CMK-204 4 Pin Wire Connector

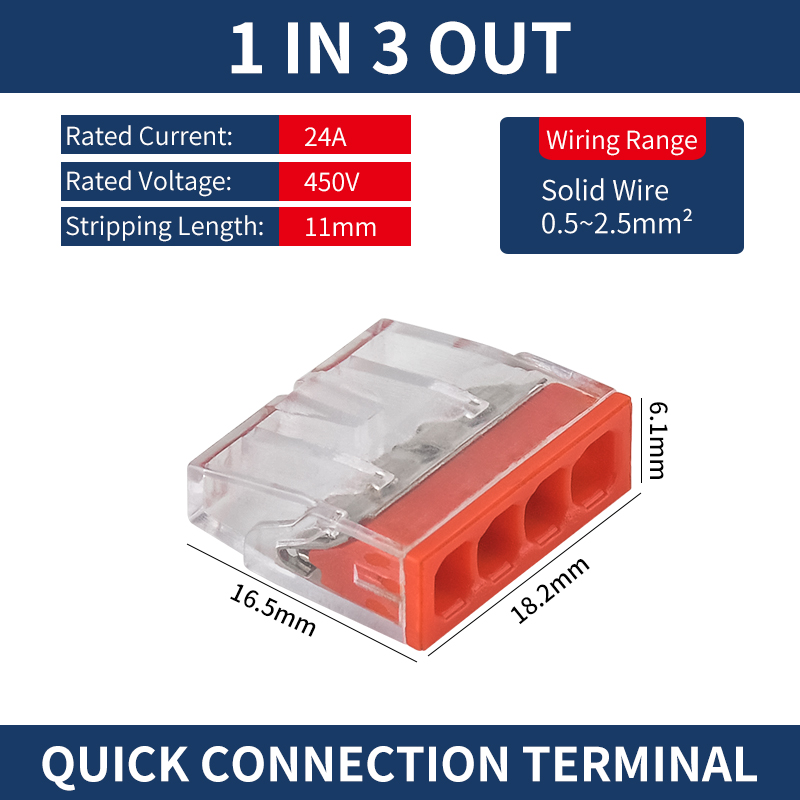

Elevate your electrical connections with the CMK-204 4 Pin Wire Connector. With four circuits and dimensions of 6.1mm x 16.5mm x 17.6mm, this connector offers unparalleled versatility and adaptability for a wide range of applications.

Certified by RoHS, SGS, CE, and SASO, the CMK-204 guarantees compliance with industry standards for quality, safety, and environmental responsibility. Rest assured, this connector meets stringent requirements, providing peace of mind for both professionals and end-users alike.

Featuring a voltage rating of 450V and a rated current of 24A, the CMK-204 is built to handle demanding electrical loads with ease. Its connection capacity ranges from 0.5mm² to 2.5mm², accommodating different wire sizes and ensuring compatibility across diverse wiring configurations.

Features

● Voltage: 450V
● Rated Current: 24A
● Connection Capacity: 0.5-2.5mm²
● Working Temperature: -20℃ – +85℃
● Strip Length: 11mm/0.43inch

Material

● Connector Shell: Transparent polycarbonate
● Conductive Parts: Thinned copper
● Contact spring: SS301

Product Approvals

Efficient Connections: Benefit of CMK-204 4 Pin Wire Connector

Streamline your operations and cut down on expenses with the CMK-204. Engineered for tool-free connection of solid, stranded, and fine-stranded cables, it offers a professional-grade solution for efficient cable joining. Whether through push-in termination or lever-actuated mechanisms, our connectors save you valuable time and resources.

Here’s what you gain:

Swift and user-friendly operation
Versatile connectors suitable for diverse applications
Compact design allows for high wiring density
Neat and organized wiring within control cabinets and junction boxes
Hassle-free installation requiring no maintenance
Secure and enduring connections for peace of mind

Details
Contact Us

Details

Reliable 4 Pin Wire Connector with Durable Materials

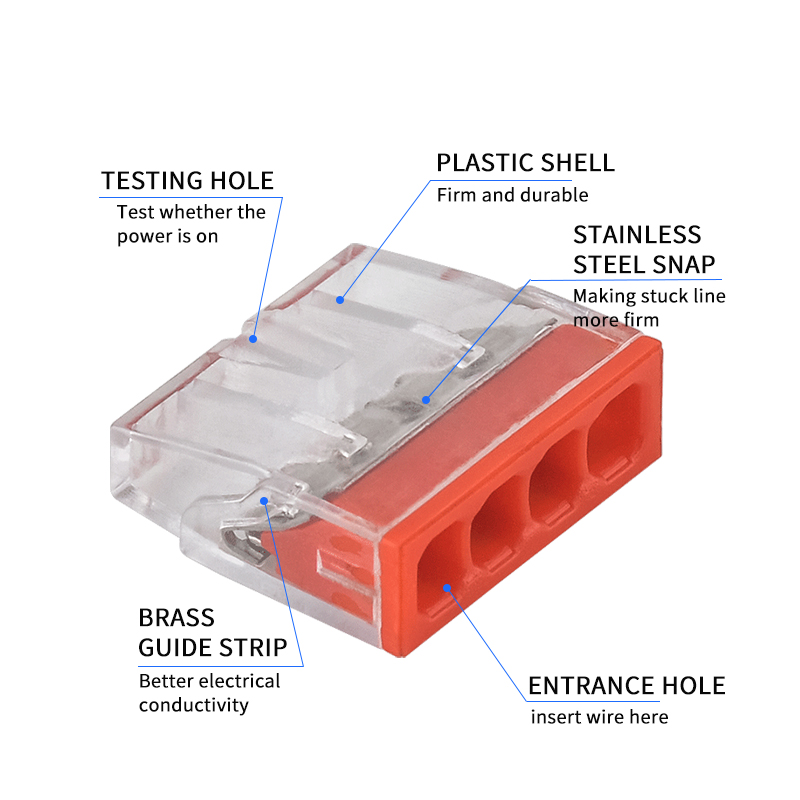

Featuring a durable construction, the 4 Pin Wire Connector ensures long-lasting performance in various electrical applications. With a brass guide strip, it offers superior electrical conductivity, ensuring efficient transmission of power. Additionally, the stainless steel snap enhances stability, making connections more secure and reliable, even in challenging environments.

Specifications

Product Code	Connector type	No.of circuits	Rigid wire mm²	Volt(V)	Ampere(A)	Un	Un
CMK-202		2	0.5→2.5	450 V	24A	150	9000
CMK-203		3				100	6000
CMK-204		4				100	6000
CMK-205		5				10	6000
CMK-206		6				50	3000
CMK-208		8				50	3000
