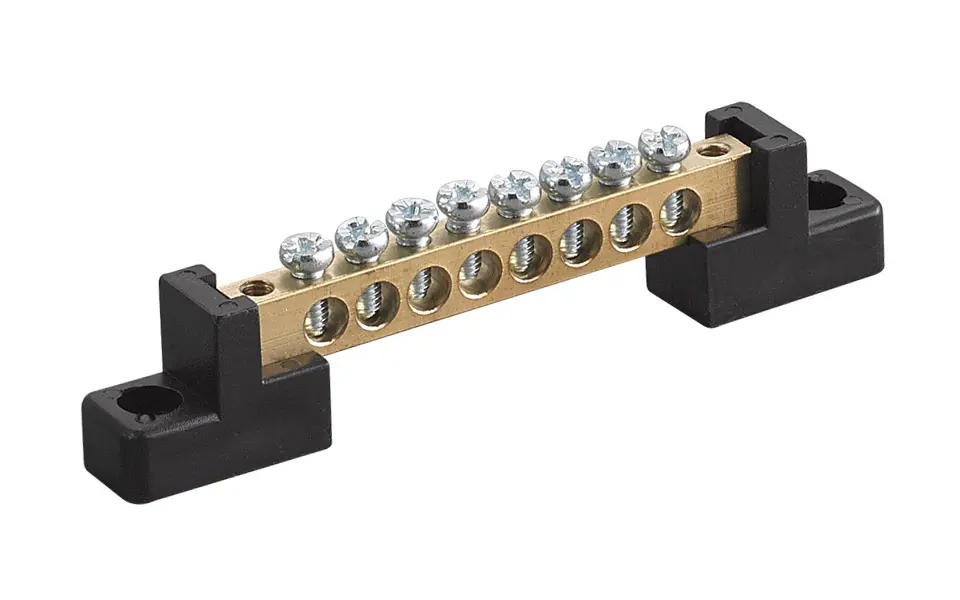

The JHT07 Neutral Link Bar provides reliable neutral electrical connections. We offer multiple options, including 4 to 12 connection holes and two copper piece specifications: “6×9” and “8×12”, to meet the needs of various electrical systems. These bars are made of high-quality copper, ensuring efficient current transmission. What’s more, we also offer customization options to meet specific electrical requirements, ensuring current balance and the stable operation of the system.
Features
● Voltage: 400-500V
● Rated Current: 60-80A
● Mounting type: Rail mounting
● Number of connection holes: 4, 6, 8, 10, 12
● Copper piece cross-sectional area: “6×9”, “8×12”
● Working Temperature: -30℃ ~ +90℃
Material
● Conductor: Copper
● Product enclosure: PP
● Screws: 45# steel (light blue zinc)
Application
Neutral Link Bars are commonly used in electrical distribution panels, control systems, and electrical cabinets to ensure reliable neutral connections, maintaining proper electrical balance. Their flexibility, with options ranging from 4 to 16 connection holes and multiple copper piece sizes, makes them suitable for a wide range of electrical systems.
Product Approvals
Specifications
| △JHT07-0609 Series | |||
| Number of holes(Way) | Mounting dimension (L)mm |
Boundary dimension(L1)mm | Cross-sectional area of copper parts(mm²) |
| 4 | 58.5 | 71.5×12.5×22.5 | 6×9 |
| 6 | 71.5 | 84.5×12.5×22.5 | 6×9 |
| 8 | 84.5 | 97.5×12.5×22.5 | 6×9 |
| 10 | 97.5 | 110.5×12.5×22.5 | 6×9 |
| 12 | 110.5 | 123.5×12.5×22.5 | 6×9 |
Specifications
| △JHT07-0812 Series | |||
| Number of holes(Way) | Mounting dimension (L)mm |
Boundary dimension(L1)mm | Cross-sectional area of copper parts(mm²) |
| 4 | 68.5 | 815×12.5×24.5 | 8×12 |
| 6 | 85.5 | 98.5×12.5×24.5 | 8×12 |
| 8 | 102.5 | 1155×12.5×24.5 | 8×12 |
| 10 | 119.5 | 132.5×12.5×24.5 | 8×12 |
| 12 | 136.5 | 149.5×12.5×24.5 | 8×12 |
