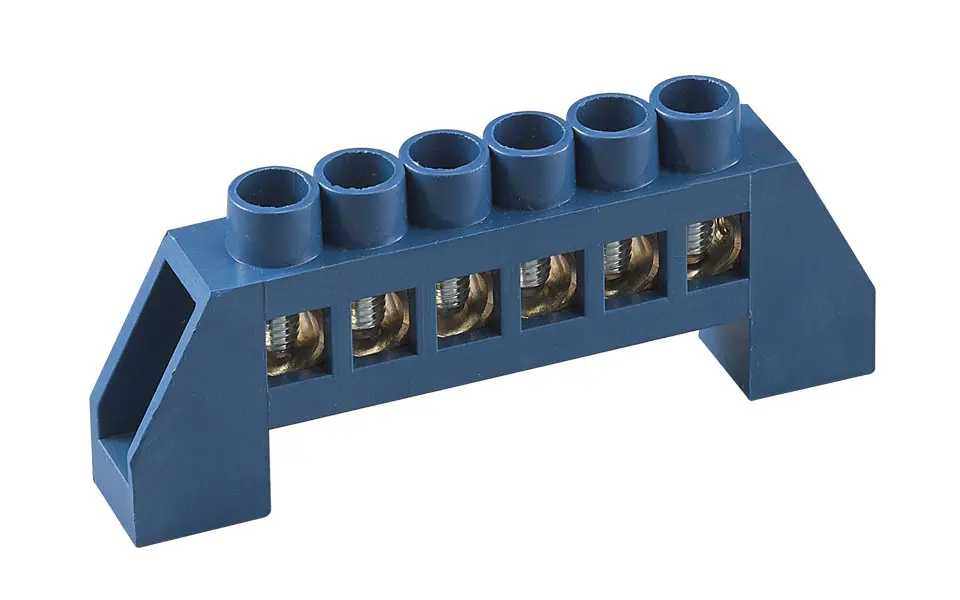

The JHT8 series terminal block is a high-performance porous terminal block widely used in electrical connections and wiring systems.
This series of products has multiple specifications and can provide various models such as 4, 6, 8, 10, and 12 holes to meet different application needs. The JHT8-0609 and JHT8-0812 sub-series are suitable for copper parts with cross-sectional areas of 6 X9 mm ² and 8X12 mm ², respectively.
● Mounting type: TH35/7.5 DIN rail
● Type of connection: Screw connection
● Working Temperature: -50℃ ~ 100℃
● Connector Shell: PA
● Conductor: Copper
JHT8 copper terminal block is a high-performance electrical connector suitable for use in power equipment, industrial control systems, automation equipment, and other fields, especially for scenarios that require high-density wiring. Its main features include excellent conductivity, mechanical strength, and design flexibility to adapt to different application scenarios.
| Way | Installation size (L)mm | External dimensions（L1） | Cross-sectional area of copper components(mm²） |
| 4 | 48.2 | 59.2*11.2 | 6*9 |
| 6 | 65.4 | 76.4*11.2 | 6*9 |
| 8 | 82.6 | 93.6*11.2 | 6*9 |
| 10 | 99.8 | 110.8*11.2 | 6*9 |
| 12 | 117 | 128*11.2 | 6*9 |
| Way | Installation size (L)mm | External dimensions（L1） | Cross-sectional area of copper components(mm²） |
| 4 | 48.2 | 59.2*12.2 | 8*12 |
| 6 | 65.4 | 76.4*12.2 | 8*12 |
| 8 | 82.6 | 93.6*12.2 | 8*12 |
| 10 | 99.8 | 110.8*12.2 | 8*12 |
| 12 | 117 | 128*12.2 | 8*12 |
